Manufacturing Processes for 3D Structures and 3D Electrical Interconnects

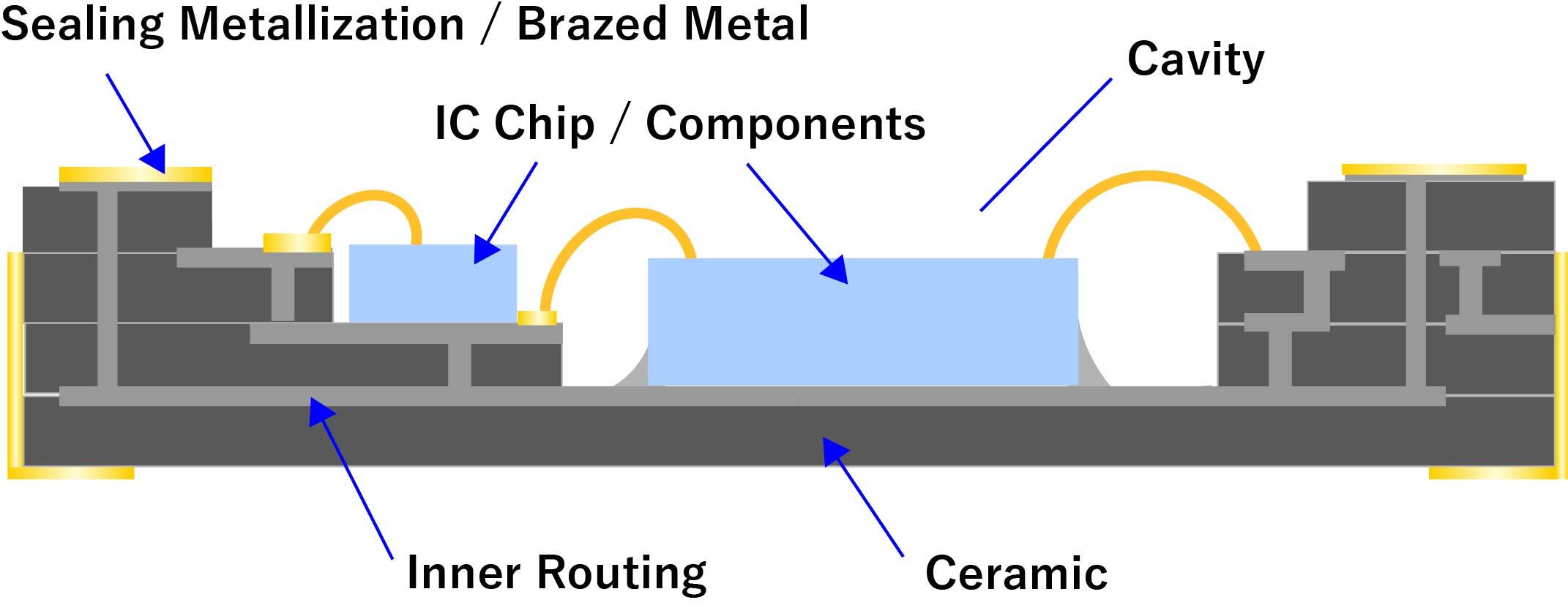

After firing, ceramics become extremely hard and difficult to process. Before this, however, a ceramic package's soft, pre-fired ceramic sheets allow us to create laminated, multilayer structures with conductor patterns in three dimensions.

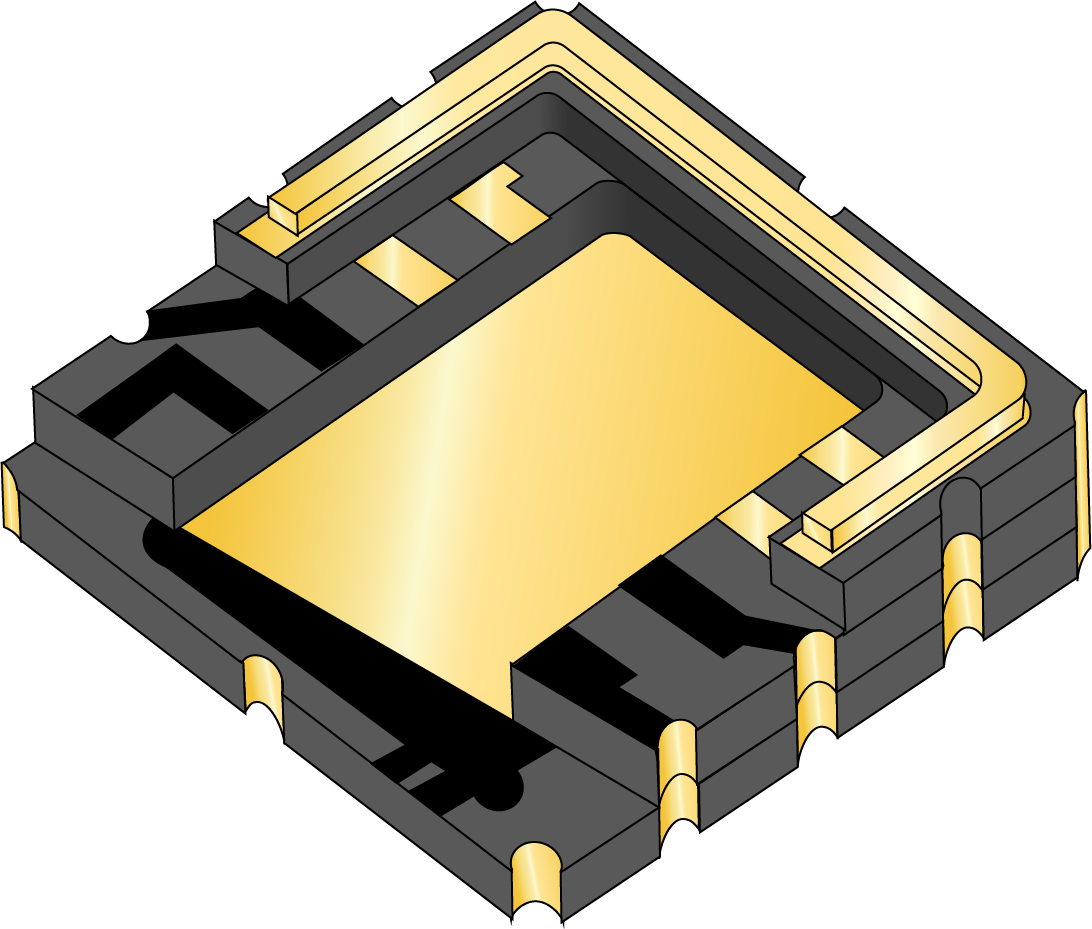

Cavities (hollow spaces) and stacked vias are easily formed with these pre-fired sheets. Ceramic packages can be designed with a high degree of freedom, allowing us to design ceramic packages for diverse customer requirements.
